Procedural Modelling with Unreal Engine and City Engine

Immersive experience in the diverse landscapes of farmlands, woods and suburban areas in Unreal Engine. - Tran Tran

Download Here

Key Features

This project aims to integrate Geographical Information System (GIS) to build a 3D virtual environment in Unreal Engine. The chosen model area is in Corvallis, Oregon (see map), selected for its diverse landscapes —including natural areas (grasslands, woodlands, scrub), land uses (farmland, farmyards), and suburban housing. The ultimate goal is to showcase the integration workflow as a case study of the integration of GIS and Graphics to motivate further research and use cases in building the digital twin.

Model Area: Corvallis, Oregon (Map Reference)

Real-World Reconstruction

The simulation environment is reconstructed from real-world geographic data sourced from OpenStreetMap. From OpenStreetMap, we are able to retrieve a colleciton of shape boundaries to identify geographic areas associated with its feature attributes such as land uses, height, shape type to populate the virtual environment with 3D assets and layout that reflect its real-world layout. This data-driven approach ensures that the environment is both believable and scalable, enabling rapid generation of suburban areas without compromising on realism or detail.

Procedural Content Generation

From suburban houses, powerlines to a vast areas of farmlands, woods, the environment is built using rule-based procedural modeling, allowing streets, houses, fences, and infrastructure to be automatically generated dynamically. This approach minimizes manual design work, speeds up iteration, and ensures consistent, scalable worldbuilding across large areas

Technical Workflow

The project integrates two primary data layers: (1) Geospatial Data from OpenStreetMap (OSM), which includes 2D boundary and attribute data; (2) 3D Procedural Content, generated using a combination of CityEngine and Unreal Engine’s PCG (Procedural Content Generation) plugin.

1. Procedural Modelling in CityEngine

CityEngine is a ArcGIS application specializing in the generation of ubban environments It provides both manual drawing tool and procedural tool for city modelling with diverse compatibility with other applications such as 3D modelling application: Blender, or Web visualization (arcgis), or game engines (Unreal Engine, Unity). It uses a robust library of CGA rule packages to automate 3D asset generation.

a) Importing 2D GIS Data

GIS data from OSM is imported as two types:

  • Shapes representing buildings, land uses, parking zones, etc.
  • Graphs representing roads and linear infrastructure (e.g., fences, powerlines).

b) Generating 3D Content with CGA

CityEngine has its own unique programming language called CGA (Computer Generated Architecture). CGA rules use geometry operation to transform the shape, manipulate the shape, or apply textures to provide a rich, detailed 3D models. CGA rules are defined in rule packages (.rpk) alongside with 3D object files, and texture files referenced

Writing a CGA rule file: Suburban House Modelling

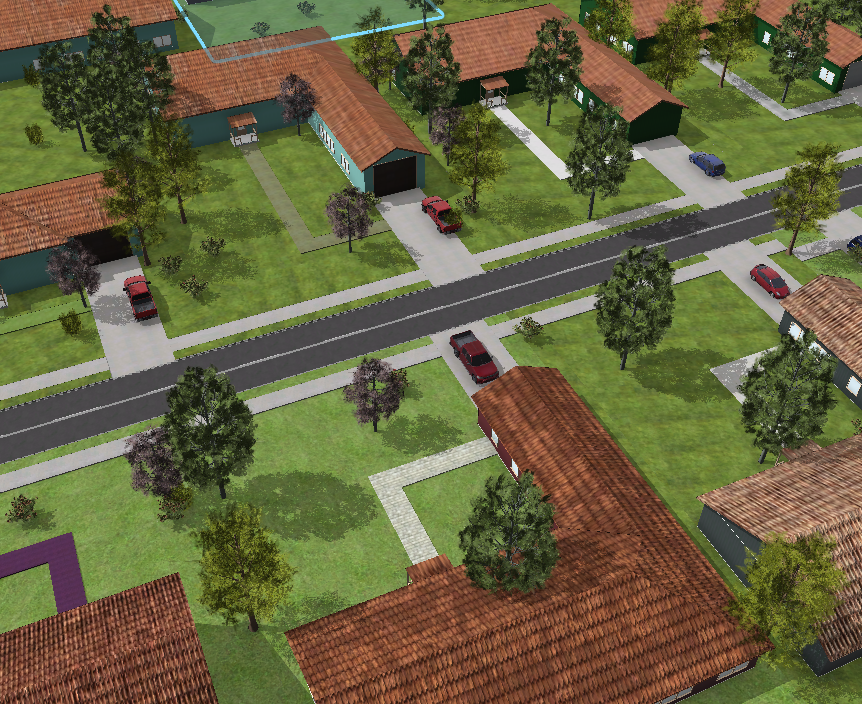

Suburban Block Layout

A suburban house model features an L-shaped structure, with one longer wing housing the garage, which faces the street. The garage connects to a driveway that extends directly to the street. The driveway is extruded and slightly inclined upward to match elevation changes or grading. Each house is fronted by a sidewalk running parallel to the street, typically accompanied by a lawn or green buffer that separates the house from the roadway. From the driveway, a walkway leads to the front door, cutting through the front yard and providing a clear pedestrian path from the street to the home’s entrance.

Integrate street attributes to House Generation

In CityEngine, the graph network not only generate street shapes but also subdivide lots enclosed by the street network. Here, this method is used to model residental areas where each lot is assigned the CGA rule files. Comparing with the traditional method of house generation from OSM building footprint (Figure 1), the lot subdivision method subdivide each lots and tags them with street facing attributes to identify the house orientation, thus enable the generation of driveway and sidewalk connected from the house to the street

Model Area: Corvallis, Oregon (Map Reference)

Description of the image

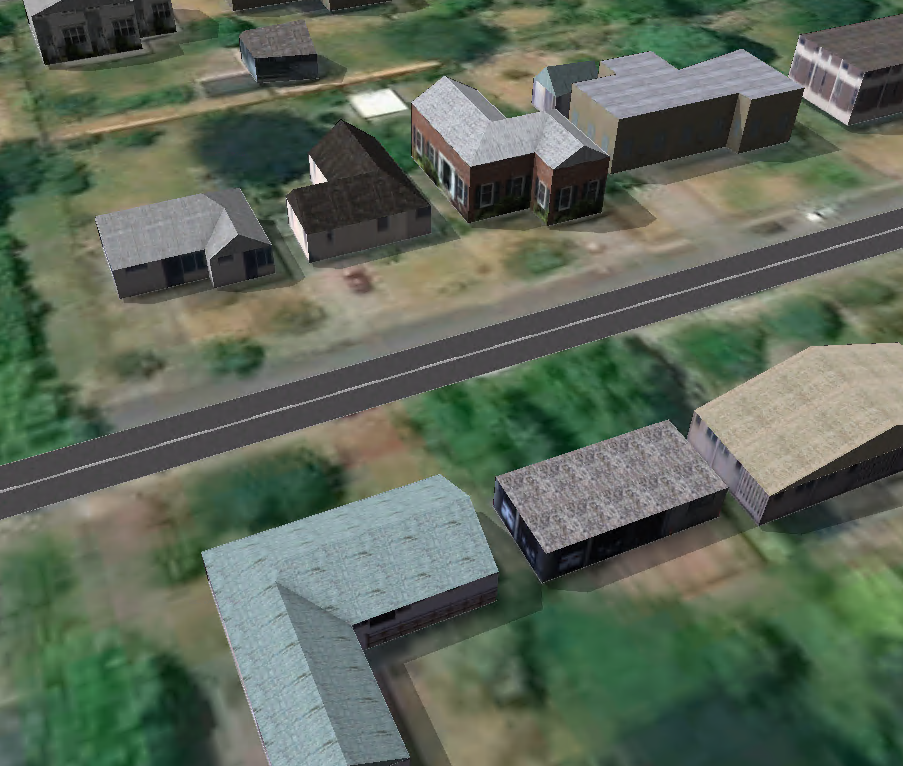

Normal approach: Import Buildings from OSM data then extruded with roofs and applied texture
Description of the image

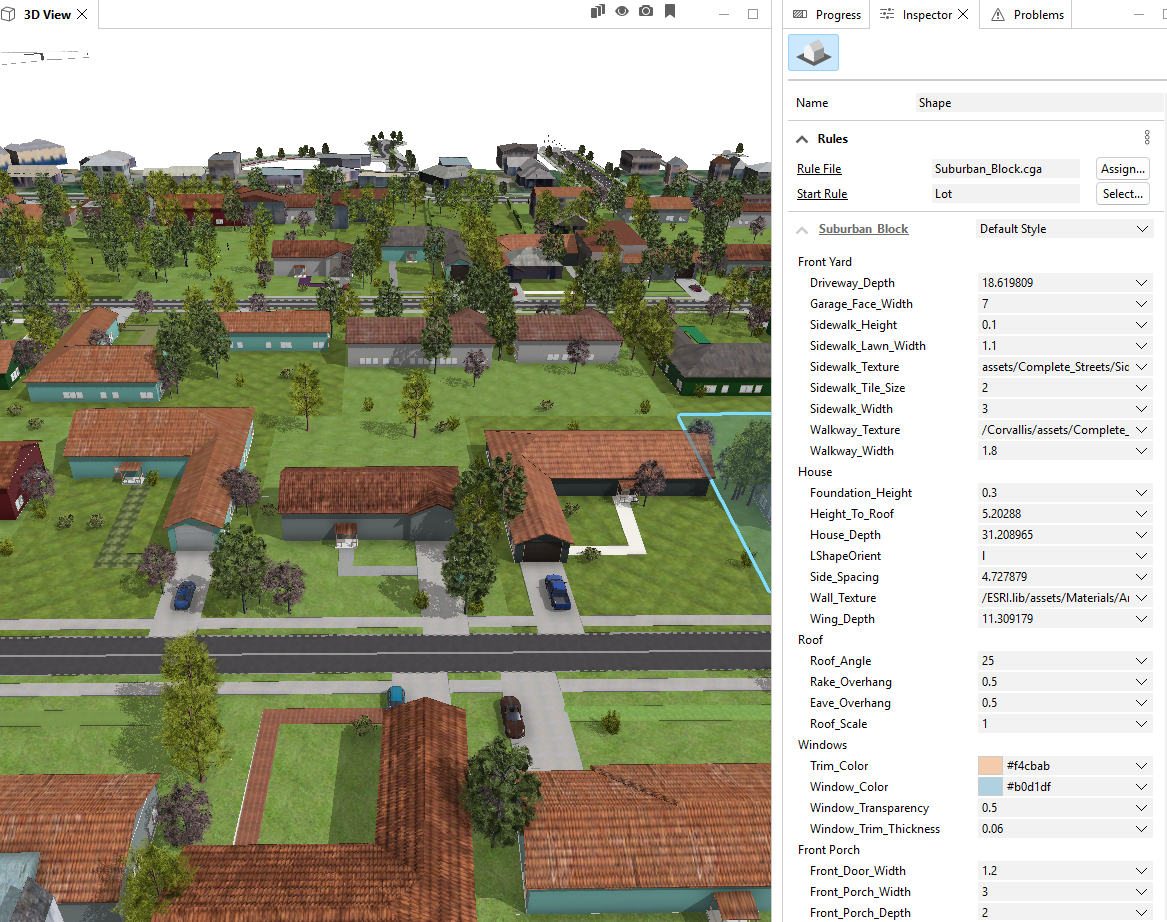

Our approach: Subdivide lots in Street Shapes and applied Suburban House CGA rule to generate house shapes, driveways aligned with sidewalks

Modifying exisitng CGA rule files

Street Modelling

From the street attribute, the street shape's width is calculated from the number of lanes, cycleway lanes, and parking lanes side. Then Complete Street rule package are assigned to the Street to generate streets and sidewalks based on number of lands, street direction, cycleway, and parking attributes.

Source: Wasserman, D. Complete Street Rule. (2015)GitHub repository

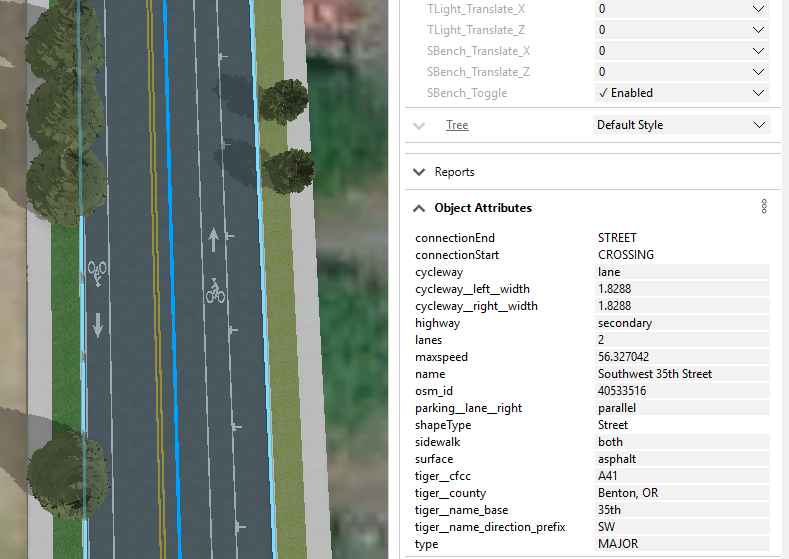

CityEngine Street Example
Suburban Add-ons

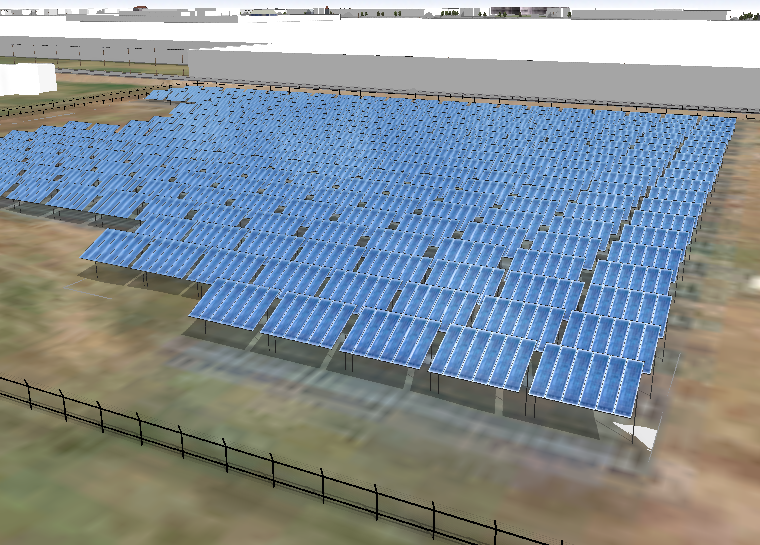

Solar Panel CGA (Source: Example_Redlands_Redevelopment__2024_0)
Suburban Add-ons

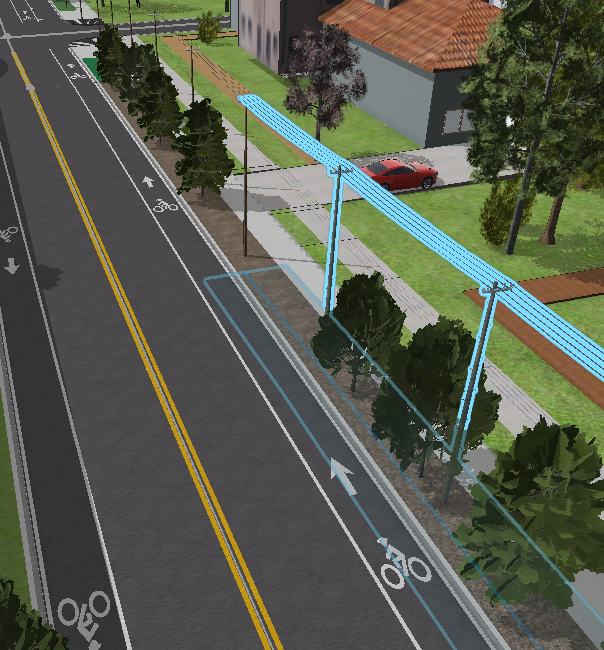

Powerlines CGA

2. Procedural Content Generation in Unreal Engine

a) Importing CityEngine Models

CityEngine Models are imported into Unreal Engine using the Datasmith plugin. This process retains all object attributes by storing them as Asset User Data. These attributes are then converted into tags, which can be used as filters in the Procedural Content Generation (PCG) workflow

b) PCG Workflow

Separate PCG Graphs are created for each landscape type, such as wood, farmland, grass, meadow, and road. Each PCG Graph performs the following steps:

  1. World Ray Hit Query
    Perform a raycast (World Ray Hit) on actors tagged with the appropriate landscape type (e.g., wood, grass) to find valid placement surfaces.
  2. Point Sampling
    Generate points on the hit surfaces using parameters such as:
    • Looseness: controls spacing irregularity between points
    • Point Extents: the area each point affects
    • Point Density: how many points are generated (e.g., higher density for woods)
  3. Project Points onto Terrain
    Align generated points to the terrain surface to ensure elevation and slope accuracy.
  4. Apply Random Offsets, Scales, and Rotations
    Introduce variation to each point to prevent visual repetition and achieve natural distribution.
  5. Spawn Static Meshes
    Instantiate a diverse set of static meshes (e.g., trees, shrubs, rocks) according to the landscape type.
Suburban Block Layout

Future Enhancements

Dynamic PCG Workflow

- Streamlined PCG Attachment: The PCG attachment and tagging process can be streamlined to be more robust and automated, such as by including only useful tag filters or attaching PCG components automatically.

- Diverse Landscape: Each landscape can be populated with a wider range of vegetation, crops, and ground features.

- PCG connection to the environment: Road realism can be enhanced with grass on the side; and each landscape area can be designed to blend smoothly into the next or into the road

Suburban house Rule Package

- Corner Lot Handling: The current CGA rule for suburban houses does not support lots located at street corners, where there are multiple street-facing edges. At a corner lot, houses typically have sidewalks wrapping around the corner and are set farther back from the street, often with added fences or plantings.

- Expanded House Shapes: Additional house shapes with diverse door generation and placement can be modeled to avoid repetiton and improve realism.

Powerline Rule Package

Continuous powerline generation at CROSSING/JOINT: At these nodes, the rule should switch to using an intersection pole. For diagonal nodes, the orientation of the pole and the stretching of the wires should be dynamically encoded to close any gaps between the wire and the pole.
